Reference: BB.BM20.003L
Brand: BacBrewing
Spare part filter disc large mesh 1,5x1,5mm for Yeld increase disc BM20
Spare part filter disc large mesh 1,5x1,5mm for increase disc BM20
Increase disc for BM20/BM20Plus large mesh 1,5x1,5 mm
Safe Payments
Fast Shipping
Free Returns

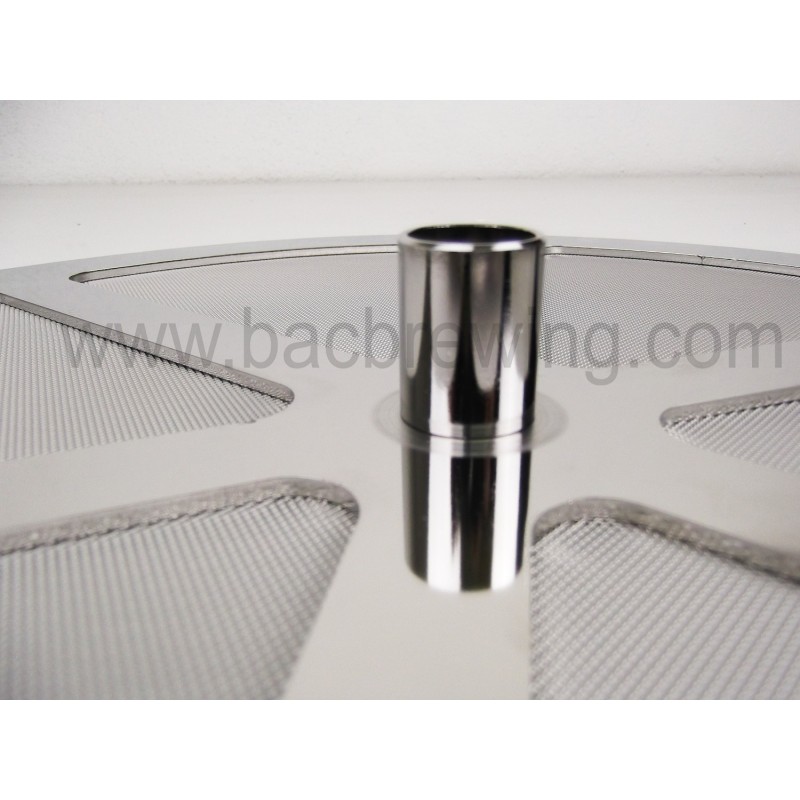

Increased disk specific for Braumeister normal BM20 or Plus
Version with filtering disc with small holes 0.9x0.9mm
Main disk thickness 3mm.
The product is composed of

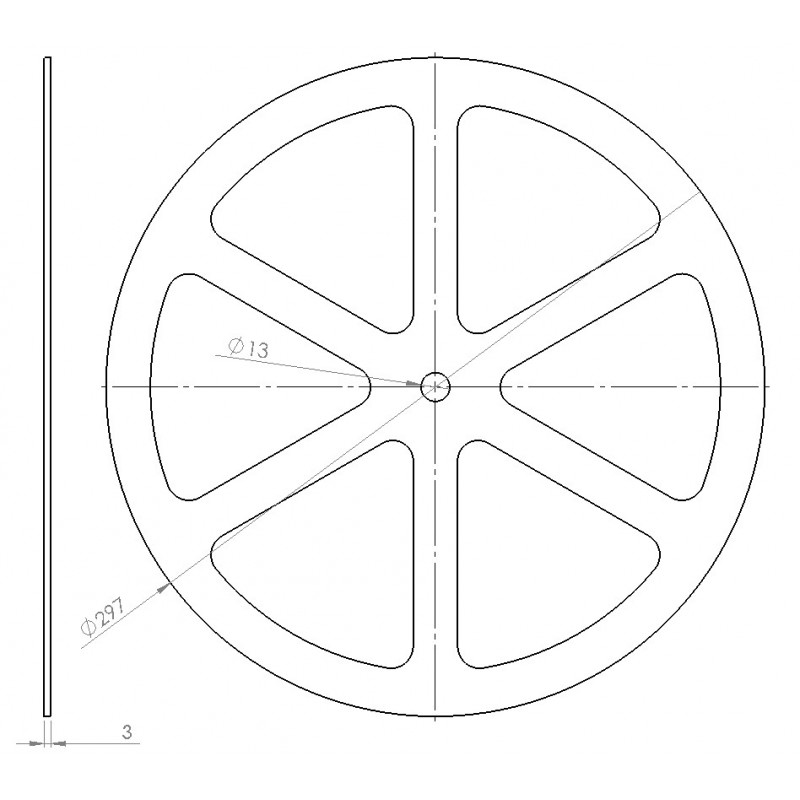

A-main disc diameter 297 mm thickness 3 mm
B-Filter disk
C-Thickness for central pressure
The hook and the silicone ring are no longer useful to use the original upper filter disk rotated 180 °

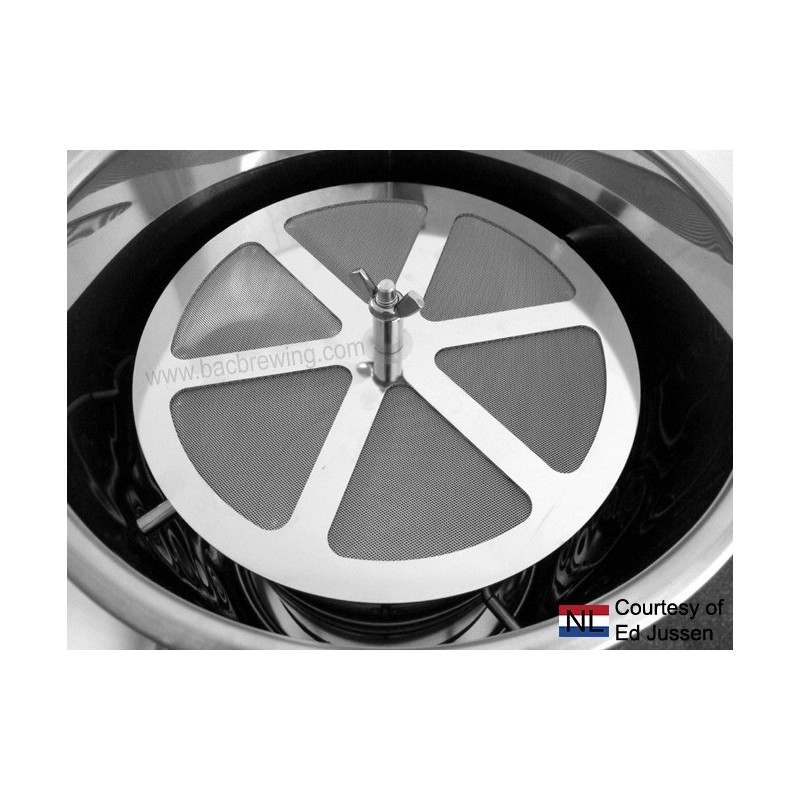

For its block to the malt pipe the original Braumeister pipe is not used but directly the thickness supplied (C). In this way the yield increase disk is pressed in the center improving the pressure applied to the malt pipe which is thus applied to the whole circumference in a homogeneous way.

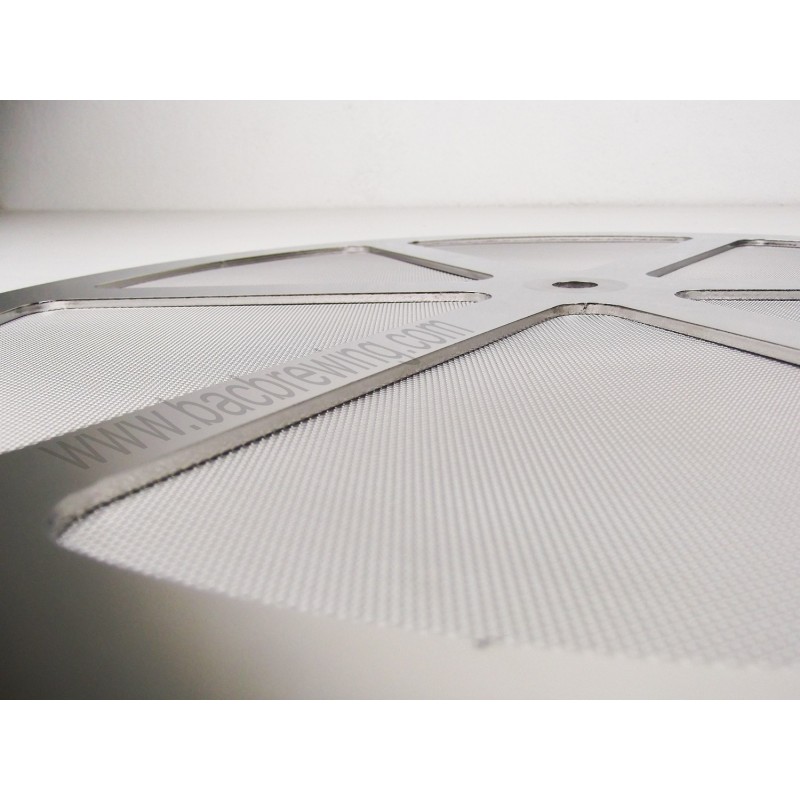

Surface finish of the main mirror disk by electrolyte immersion electropolishing. Passivated for immersion for more than 3 hours
All the products are internally tested by BacBrewing but we also like to give them to our customers to test them and see if they actually work, what can be improved etc. So for this product we entrust a customer who has been using Braumeister products for years
The following table is the result of a test made on a Braumeister BM50
Pre-boil results:
TEST | LT ACQUA MASH | KG GRANI | LT ACQUA SPARGE | PRE- BOIL VOL | PRE-BOIL GRAVITY | EFFICIENZA PRE-BOIL |
BM 50 LT + DISCO FILTRANTE BACBREWING (cotta American IPA) | 62 | 16 | 13 | 60 | 1061 | 76% |
As you can see from the chart 16kg of malt have been used (BM50), so the 23% more than the standard malt-pipe capacity (13kg). The same percentage can be obtained with the BM20 from 6 to 7,4kg The percentage of increase yield is 23% also with regard to the version BM10
