Reference: BB.BM50.003S
Brand: BacBrewing
Spare part filter disc fine mesh 0,9x0,9mm for yeld increase disc BM50
Spare part filter disc fine mesh 0,9x0,9mm for increase disc BM50
Banner
Increase disc for BM50/BM50Plus large mesh 1,5x1,5 mm
Increased disk specific for Braumeister normal BM50 or Plus
Version with filtering disc with large holes 1.5x1.5 mm
Main disk thickness 3mm.
The product is composed of

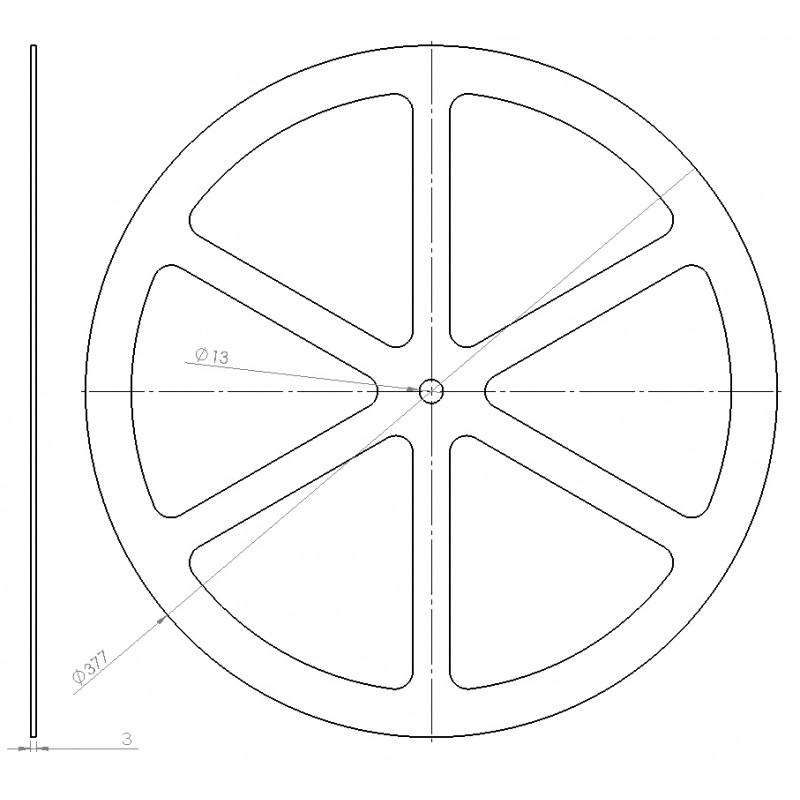

A-main disc diameter 376 mm thickness 3 mm
B-Filter disk
C-Thickness for central pressure
The hook and the silicone ring are no longer useful to use the original upper filter disk rotated 180 °
For its block to the malt pipe the original Braumeister pipe is not used but directly the thickness supplied (C). In this way the yield increase disk is pressed in the center improving the pressure applied to the malt pipe which is thus applied to the whole circumference in a homogeneous way.
Surface finish of the main mirror disk by electrolyte immersion electropolishing. Passivated for immersion for more than 3 hours
All the products are internally tested by BacBrewing but we also like to give them to our customers to test them and see if they actually work, what can be improved etc. So for this product we entrust a customer who has been using Braumeister products for years
The following table is the result of a test made on a Braumeister BM50
Pre-boil results:
TEST | LT ACQUA MASH | KG GRANI | LT ACQUA SPARGE | PRE- BOIL VOL | PRE-BOIL GRAVITY | EFFICIENZA PRE-BOIL |
BM 50 LT + DISCO FILTRANTE BACBREWING (cotta American IPA) | 62 | 16 | 13 | 60 | 1061 | 76% |
As you can see from the chart 16kg of malt have been used (BM50), so the 23% more than the standard malt-pipe capacity (13kg). The same percentage can be obtained with the BM20 from 6 to 7,4kg The percentage of increase yield is 23% also with regard to the version BM10
Reference: BB.BM50.003S
Brand: BacBrewing
Spare part filter disc fine mesh 0,9x0,9mm for increase disc BM50
Riferimento: BB.BM20-50.50mm
Marca: BacBrewing
Kit completo per filtro springer in un Braumeister BM20/50 con altezza foro 50mm dal fondo
Riferimento: BB.BM20.003S
Marca: BacBrewing
Ricambio filtro a maglia stretta per incremento resa BM20
Riferimento: BB.BM10.003V2
Marca: BacBrewing
Disco di aumento resa BM10/BM10Plus maglia fine 0,9x0,9 mm
Riferimento: BB.BM10.003S
Marca: BacBrewing
Ricambio filtro a maglia stretta per incremento resa BM10
Riferimento: BB.BM20-50.60mm
Marca: BacBrewing
Kit completo per filtro springer in un Braumeister BM20/50 con altezza foro 60mm dal fondo
Riferimento: BB.BM50.003V2
Marca: BacBrewing
Disco di aumento resa BM50/BM50Plus maglia fine 0,9x0,9 mm
Riferimento: BB500.BM20-50.002
Marca: BacBrewing
Adattatore trapano whirlpool BM20-50
Riferimento: BB.BM20.004
Marca: BacBrewing
Disco filtrante a maglia larga 1.5x1.5 mm per BM20
Riferimento: BB.BM20.003V2B
Marca: BacBrewing
Disco di aumento resa BM20/BM20Plus maglia larga 1,5x1,5 mm
Riferimento: BB.BM10.001
Marca: BacBrewing
Disco filtrante a maglia larga 1,5x1,5 mm per BM10
Riferimento: BB500.BM10.003
Marca: BacBrewing
Manetta per paletta whirlpool BM10
Riferimento: BB.BM50.003S
Marca: BacBrewing
Ricambio filtro a maglia stretta per incremento resa BM50
Riferimento: BB500.BM20-50.003
Marca: BacBrewing
Manetta per whirlpool BM20-50
Riferimento: BBV044
Marca: BacBrewing
Scovolino lungo per pulizia tubi o springer
Riferimento: BB.BM10.001
Marca: BacBrewing
Disco filtrante a maglia fine 0,9x0,9 mm per BM10
Riferimento: BB.BM20.003L
Marca: BacBrewing
Ricambio filtro a maglia larga per incremento resa BM20
Riferimento: BB.BM50.004
Marca: BacBrewing
Disco filtrante a maglia larga 1,5x1,5 mm per BM50
Riferimento: BB.BM10.003V2B
Marca: BacBrewing
Disco di aumento resa BM10/BM10Plus maglia larga 1,5x1,5 mm
Riferimento: BB.BM20.001
Marca: BacBrewing
Disco filtrante a maglia fine 0,9x0,9 mm per BM20
Riferimento: BB.BM20.003V2
Marca: BacBrewing
Disco di aumento resa BM20/BM20Plus maglia fine 0,9x0,9 mm
Riferimento: BB.BM500.001
Marca: BacBrewing
Disco filtrante a maglia fine 0,9x0,9 mm per BM500
Riferimento: BB500.BM20-50.001
Marca: BacBrewing
Paletta whirlpool per BM20-50
Riferimento: BB.BM500.002
Marca: BacBrewing
Disco filtrante a maglia larga 1,5x1,5 mm per BM500
Riferimento: BB.BM20-50-RIC
Marca: BacBrewing
Kit 5+5 guarnizioni di ricambio per raccordi springer in Braumeister BM20-50
Riferimento: BB.BM10.003L
Marca: BacBrewing
Ricambio filtro a maglia larga per incremento resa BM10
Riferimento: BB.BM50.001
Marca: BacBrewing
Disco filtrante a maglia fine 0,9x0,9 mm per BM50
Riferimento: BB.BM50.003L
Marca: BacBrewing
Ricambio filtro maglia larga per Disco di aumento resa BM50
Increased capacity on my BM50
I do have a BM50 with the shortened malt pipe to brew smalle quantity and its been a very good improvement. I have been able to reach 1.061 pre-boil gravity using maximum malt capacity. I had to do a 1,5 hours mash because the gravity was still raising after an hour... so I am very happy tp be able to brew higher gravity beer without using dry malt extract.
I used the 1.5mm mesh disk.
Increase disc for BM50/BM50Plus large mesh 1,5x1,5 mm
